13.56Mhz chip NTAG 213 NFC tag sticker
NFC tag
| Other features | Waterproof / Weatherproof |
| communication method | RFID, NFC |
| Support customization | Customized logo, Graphic customization |
| material | PVC, coated paper |
| chip | ntag213 |
| size | 25mm (customized) |
| application | E-payment |
| craft | encoding |
| printing | CMYK offset printing |
| MOQ | 5000 pcs |
Share to:
Product Description
NFC operating frequency is 13.56MHz; It is the near field wireless communication technology, which can better ensure security; Support both read-write mode and card mode; It is widely used in access control, bus card, mobile payment and other fields.
Product dimenttions:
|
Model
|
antenna size
|
Die-cut size
|
vertical gap(antenna)
|
Lateral gop(antenna)
|
Inaly roil width
|
|
LIJIA
|
76*45mm
|
85.5*54mm(5*5)
|
|||
|
INLAY
|
76*45mm
|
85.5*54mm
|
|||
|
XY-M001
|
45*76mm
|
54*85.5mm
|
13mm
|
29mm
|
74mm
|
|
XY-M002
|
15*52mm
|
18*56mm
|
10mm
|
32mm
|
47mm
|
|
XY-M003
|
diameter:22mm
|
diameter:25mm
|
8mm
|
25mm
|
47mm
|
|
XY-M004
|
22*35mm
|
25*38mm
25*40mm |
8mm
|
25mm
|
47mm
|
|
XY-I002
|
45*45mm
|
50*50mm
|
8mm
|
12mm
|
57mm
|
|
XY-M007
|
32*32mm
|
35*35mm
|
8mm
|
15mm
|
47mm
|
|
XY-M008
|
11*26mm
|
15*30mm
|
8mm
|
15mm
|
47mm
|
|
XY-M009
|
diameter:
25mm |
diameter:
28/30mm |
15mm
|
22mm
|
47mm
|
|
XY-M010
|
diameter:
25mm |
diameter:
30/35/40/45 mm |
|
|
|
|
LJM-001
|
45*76mm
|
85.5*54mm
|
13mm
|
29mm
|
74mm
|
Electrical specifications
IC： NTAG213
Frequency： 13.56MHz
Protocol： ISO 14443
Memory： 144 bytes
Delivery information
Surface Material： Paper or PET
Inner Core Size: 76mm
Quantity per roll: 1000~5000pcs(Dry Inlay)
1000~4000pcs(Wet Inlay/label)
Unwinding: Chip side up
Quality: 100%tested,NG replaced
Environment
Operation: -40℃ to 85℃
Storage: -5℃ to 30℃
Data Retention: 100,000 cycles

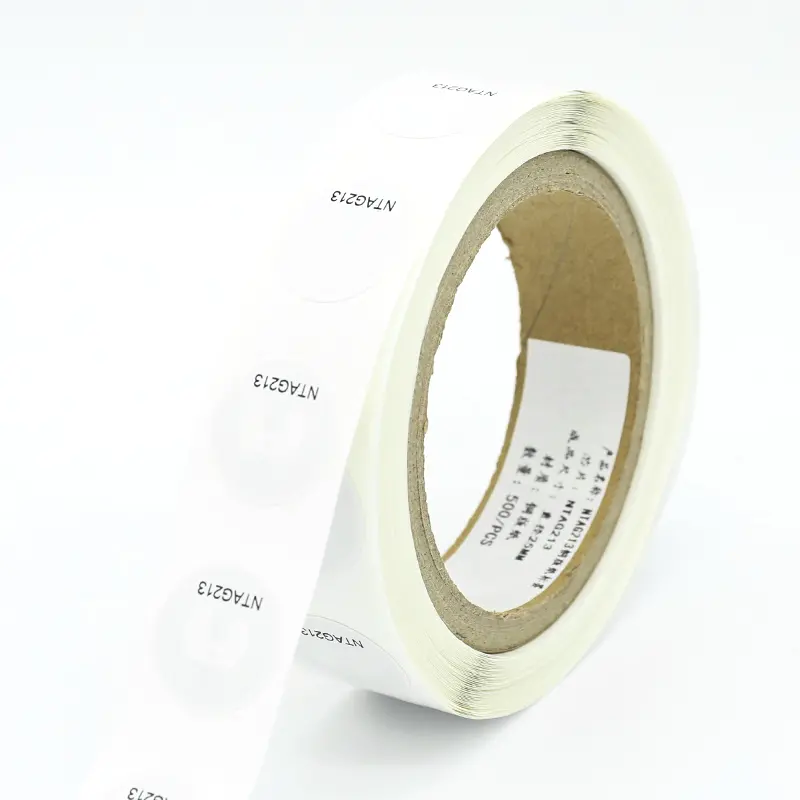

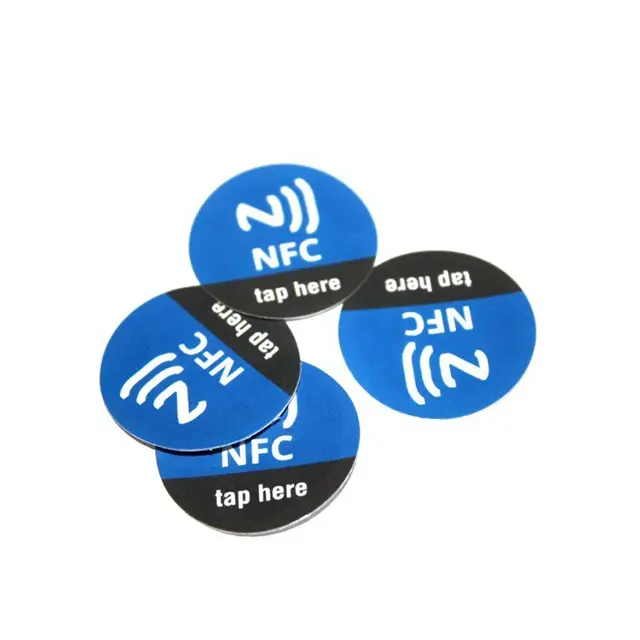

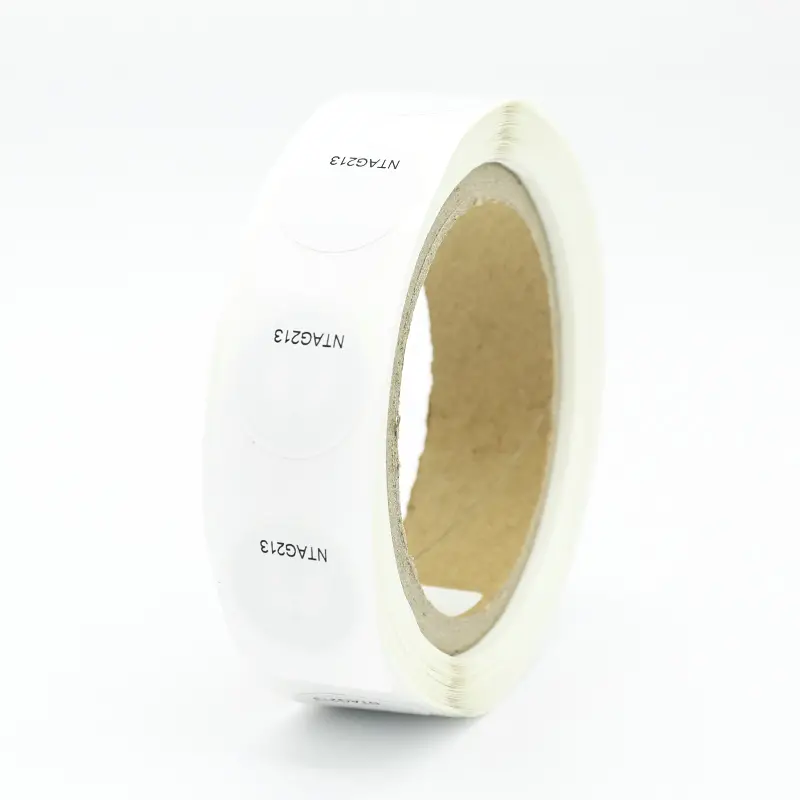

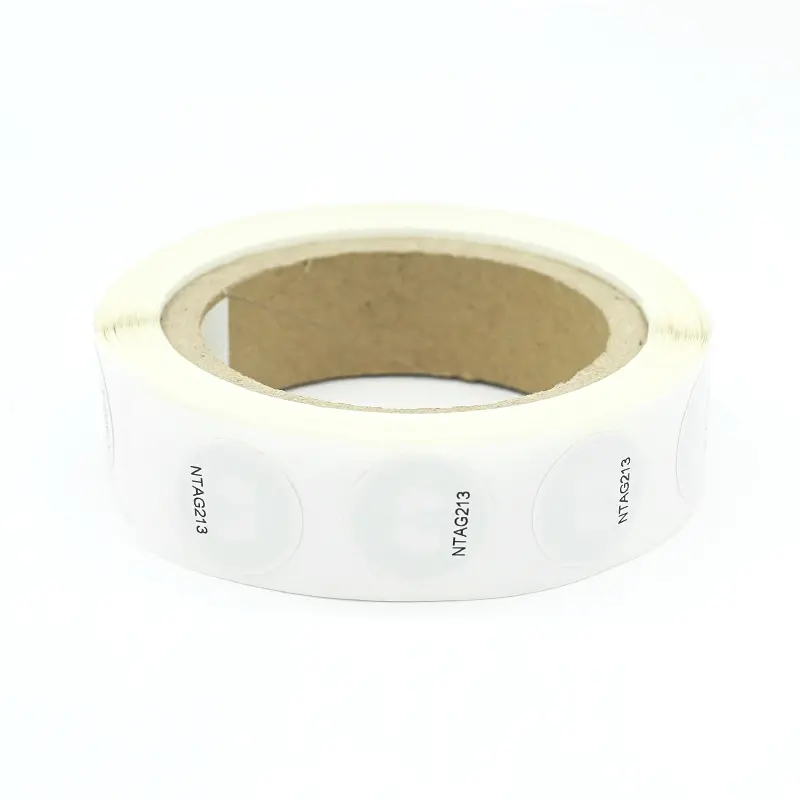

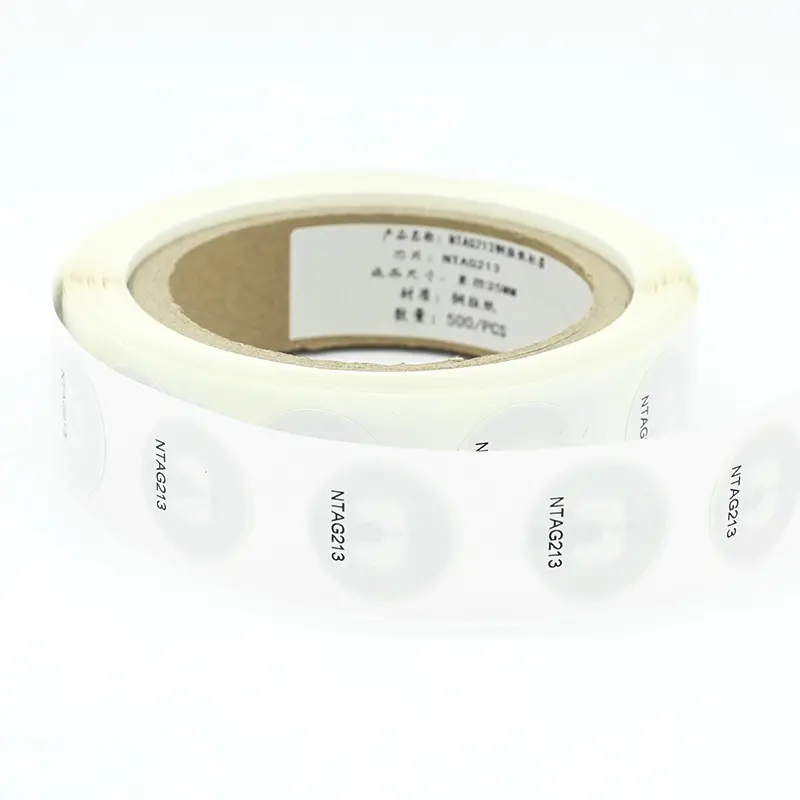

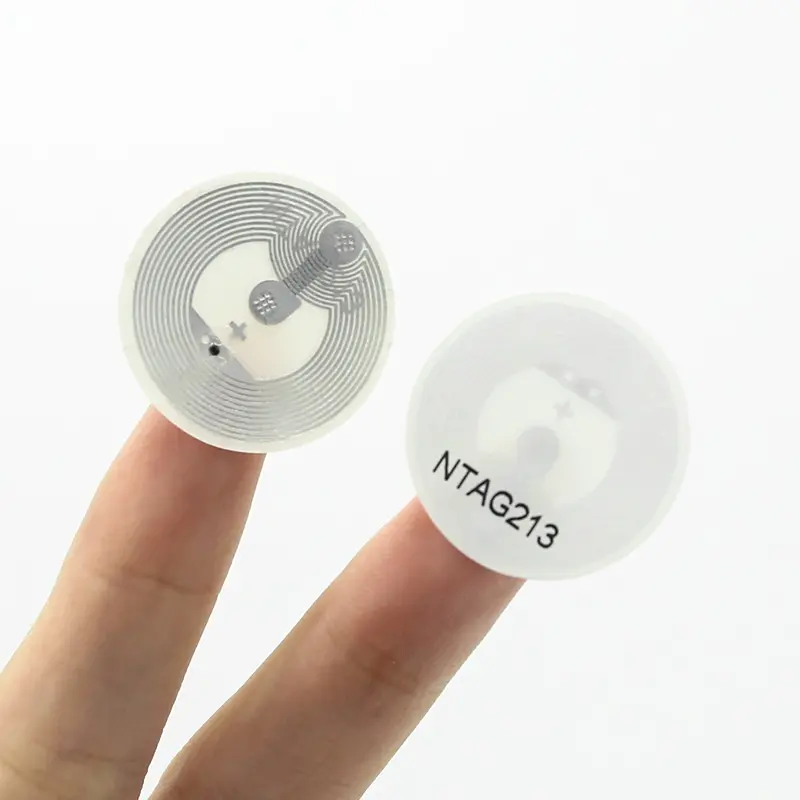

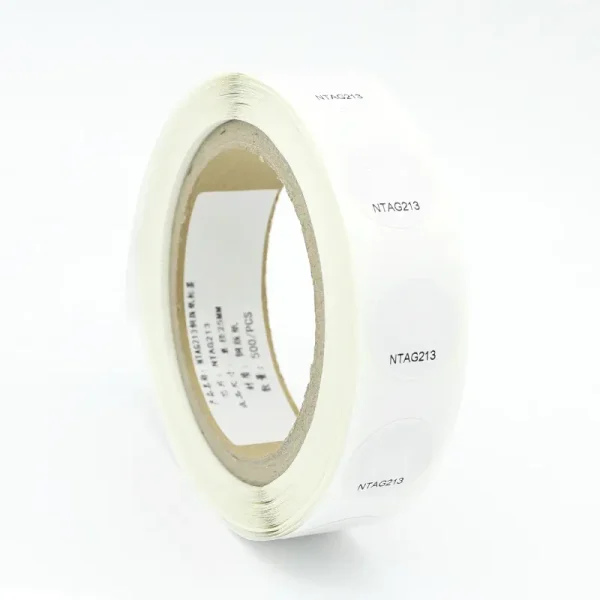

Detailed Images
