Hot sale Passive RFID UHF custom Dry Inlay With Alien H9 for inventory management
Application: Assets Management, Document Management, Drug Inventory Management, Jewelry Management, Smart Retail Management, Laundry Management, Apparel Management, Vehicle management, Anti-theft Label, etc.
| product name | UHF dry inlay |
| chip | U8, U9, MR6 (custom) |
| material | PET |
| frequency | 860-960mhz |
| reading distance | 1-10m |
| feature | lightweight |
| application | asset management |
| protocol | ISO18000-6C |
Share to:
Inventory management/Asset Management/Warehouse management
Free Sample Long Range Passive UHF Rfid Tag/ Label/ Sticker
Â
Physical Specifications

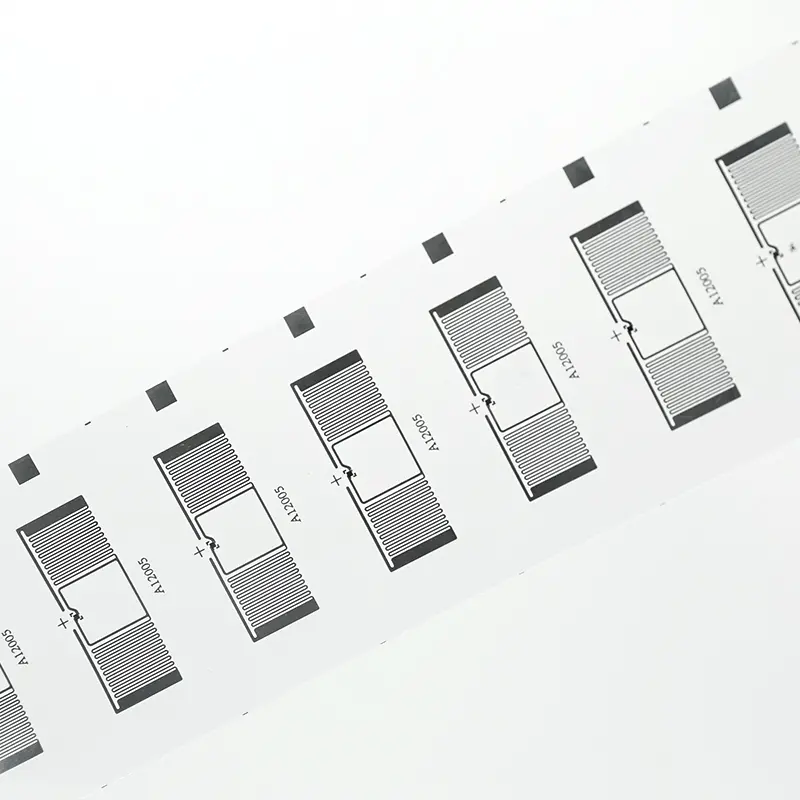

Name: UHF Dry Inlay with Alien H9
Antenna size:19*93mm (Customized)
Product Size:21*95mm (Customized)
Inlay Material: PET
Label product material can be customized: coated paper/PVC/PET…
RF Specifications
Chip:Alien H9
Frequency:860-960MHz
Protocol:ISO/IEC 18000-6C
Memory: TID- 96bits EPC-96bits User-512bits
Operating Mode: Passive
IC Life: Write endurance of 100,000 cycles, Data retention of 50 years
Operating Distance:3-8 meters ( depending on the reader configuration)
Operating temperature:-20°C~+60°C
Personalization: Logo Printing, encoding, QR code printing, Barcode printing, Laser printing

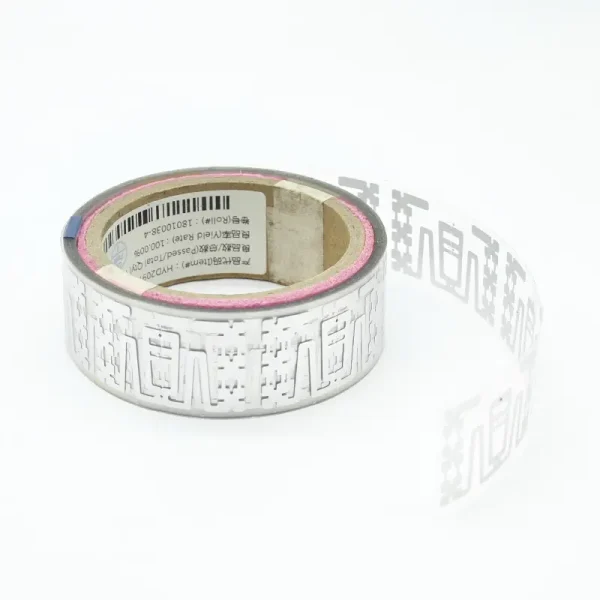

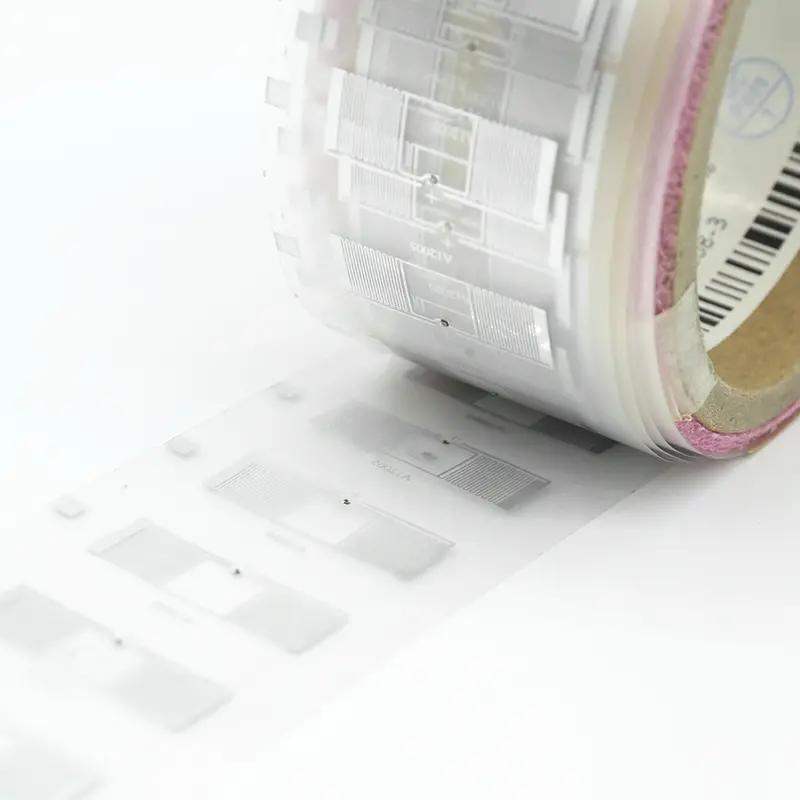

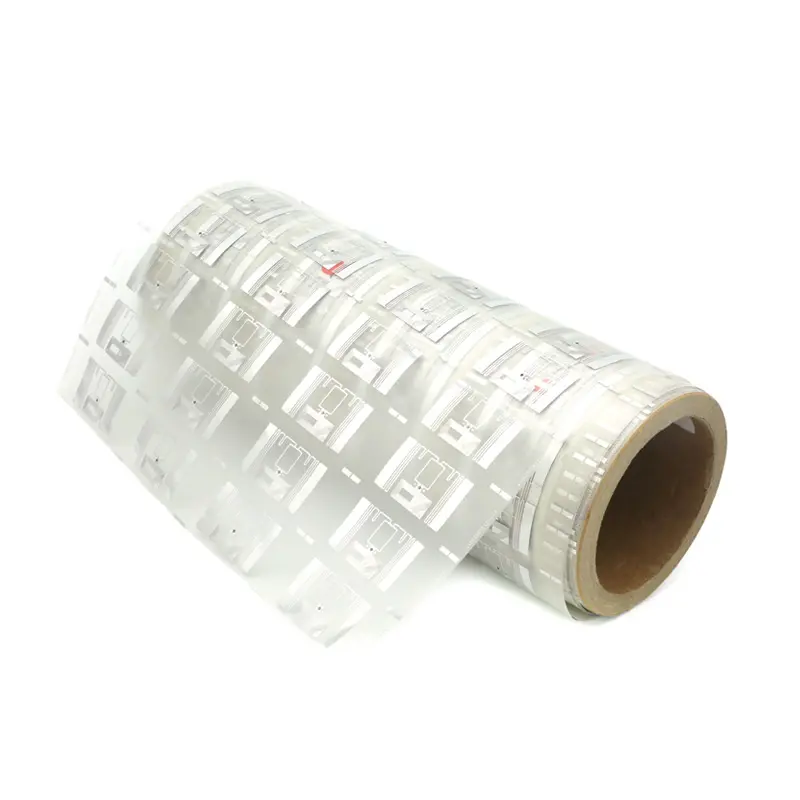

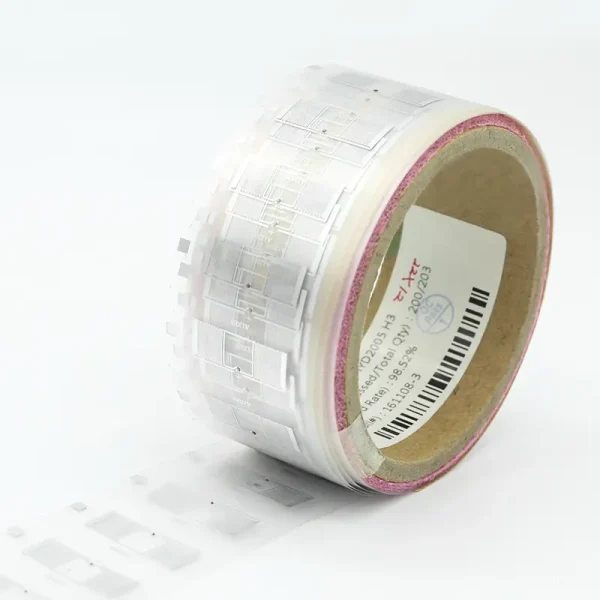

Package: 1000pcs/roll, 10 rolls/carton (customized)
Application: Assets Management, Document Management, Drug Inventory Management, Jewelry Management, Smart Retail Management, Laundry Management, Apparel Management, Vehicle Management, Anti-theft Label, etc.
Looking for an ideal Passive Adhesive RFID Inlay Manufacturer & supplier? We have a wide selection of goods priced to help you get creative. All the UHF Dry Inlay is quality guaranteed. We are the China Origin Factory of Roll Packing Uhf Label. If you have any questions, please feel free to contact us.
