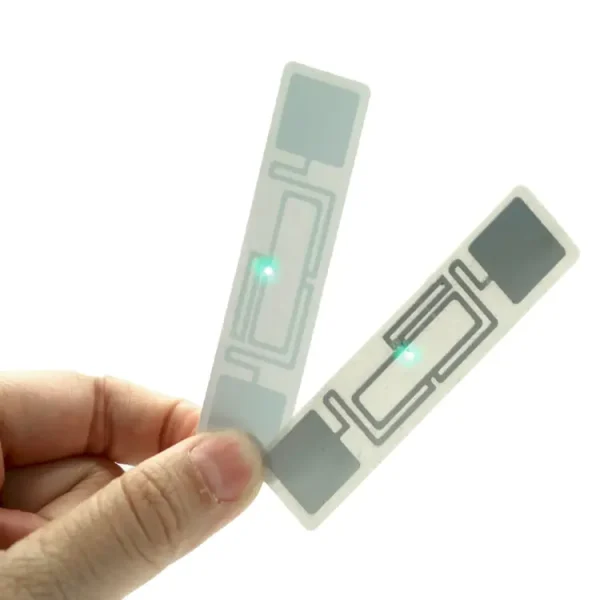

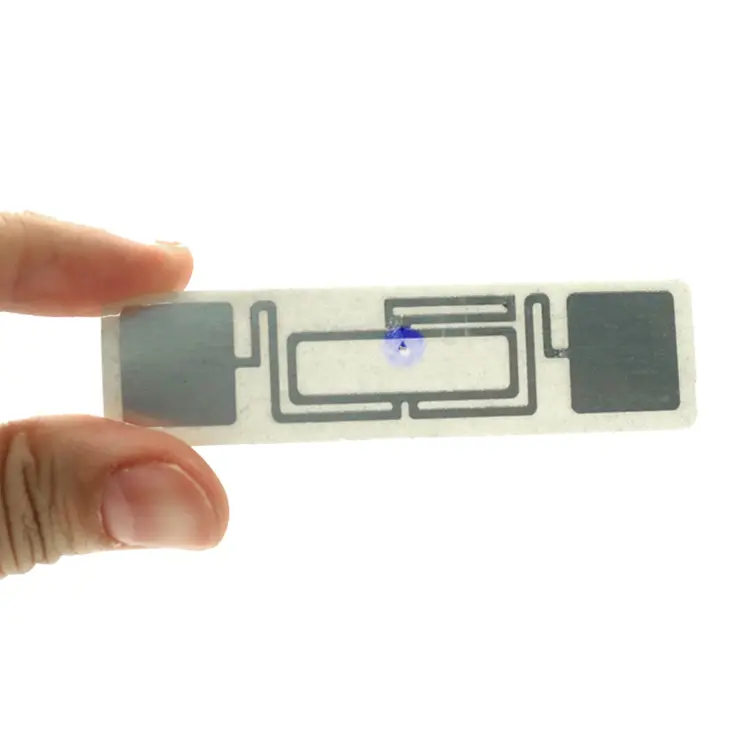

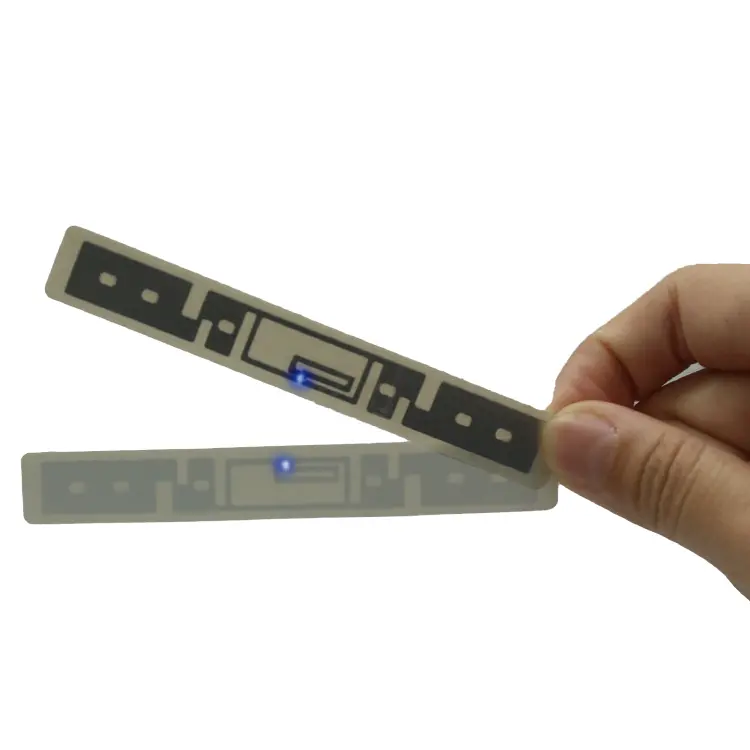

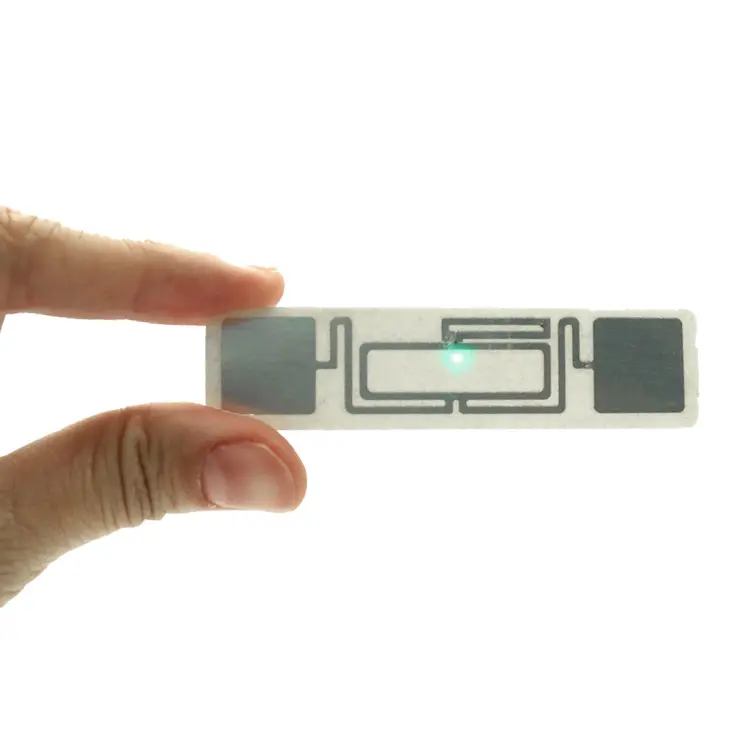

ISO/IEC 18000-6C ISO KX2005XBL UHF rfid label tag with LED flash light for library managment
The light-emitting object tag combines a high-performance UHF Gen 2 RFID chip with software programmable LED lighting technology and is compatible with the 860MHZ-960mhz EPC Gen 2 reader in terms of reading and write operations. The built-in LED light fun
| Product name | LED RFID flash tag |
| Chip | KX2005XBL+LED(Customized) |
| Dimensions | 18*75mm (customize) |
| Thickness | 0.2mm |
| Material | PET+Aluminum+LED |
| Memory | TID 96bits ;EPC 160bits ;USER 1312bits |
| Frequency | 900-928MHz (Customized) |
| Protocol | ISO/IEC 18000-6C |
| Application | Asset managment,library managment,ducument managment |
Share to:
The light-emitting object tag combines a high-performance UHF Gen 2 RFID chip with software programmable LED lighting technology and is compatible with the 860MHZ-960mhz EPC Gen 2 reader in terms of reading and write operations. The built-in LED light function can be used to optically locate tagged items with millimeter accuracy with RFID handheld devices.
| Chip | KX2005XBL+LED(Customized) |
| Dimensions | 18*75mm |
| Thickness | 0.2mm |
| Material | PET+Aluminum+LED |
| IP Rating | N/A |
| Application Temp | -20~70℃ |
| Operating Temp | -20~70℃ |
| Memory | TID 96bits ;EPC 160bits ;USER 1312bits |
| Frequency range with he best performance | 900-928MHz (Customized) |
| IC Life | Write endurance of 100,000 cycles,Data retention of 10 years |
| Protocol | ISO/IEC 18000-6C |
Feature:
*With UHF technology, hundreds of tags can be read at a time
*Reading distance: >6.5m
*100% non-magnetic material, can be used in the field of asset management
*Support high-speed read-write
Application:
*Product identification
*Inventory management
*Asset management
*Carton management
*Clothing management
*LED to locate
| 860-960MHz Chips（portion） | |||
| Chip Name | Protocol | Capacity | Frequency |
| Alien H3（Higgs 3） | ISO18000-6C | EPC 96-496bits、User 512bits | 860~960 MHz |
| Alien Higgs 4 | ISO18000-6C | EPC 128bits、User 128bits | 860~960 MHz |
| Impinj Monza 4 | ISO18000-6C | 96 bits | 860~960 MHz |
| Ucode 7 | ISO18000-6C | 128bits | 860~960 MHz |
| Ucode 8 | ISO18000-6C | EPC 128bits | 860~960 MHz |
| UCODE G2iL | ISO18000-6C | 128 bits | 860~960 MHz |
| U Code DNA | ISO18000-6C | EPC 128bits、User 3072Bits | 860~960 MHz |
| U Code HSL | ISO18000-6C | UID 8Bytes 、User 216Bytes | 860~960 MHz |
| Monza 4D | ISO18000-6C | EPC 128bits、User 32bits | 860~960 MHz |
| Monza 4QT | ISO18000-6C | 512bits | 860~960 MHz |
| Monza R6 | ISO18000-6C | 96bits | 860~960 MHz |
| Monza R6-P | ISO18000-6C | 32bits | 860~960 MHz |
| EM4124 | ISO18000-6C | 96bits | 860~960 MHz |
| EM4126 | ISO18000-6C | 208bit | 860~960 MHz |
| ME4423 | ISO18000-6C | User 160/64bits | 860~960 MHz |
FAQ
| 1. What is your MOQ? |
| Usually, our MOQ is 100 pcs. But we accept lower quantities for your trial order. |
| 2. Can we provide a sample ? |
| Sure. We usually provide existing samples for free. But a little sample charge for custom designs. The sample charge is refundable when the order is up to a certain quantity. |
| 3. How long is the sample lead time? |
| F or existing samples, it takes 1-2 days. They are free. If you want your designs, it takes 3-7 days, subject to your designs whether they need a new printing screen, etc. |
| 4. How long is the production lead time? |
| It takes 7 days for MOQ. |
| 5. How much is the freight charge? |
| To save cost for you and so that you can get goods earlier, we suggest delivering by express for small quantity. For large quantity, we suggest delivering by sea. |
| 6. What format of the file do you need if I want my design? |
| We have our professional designers. So you can provide JPG, AI, CDR or PDF, etc. We will draw artwork for mold or printing screens for you. |
