RFID Animal Management
Animal Automatic Identification Solution
Implementation Goals

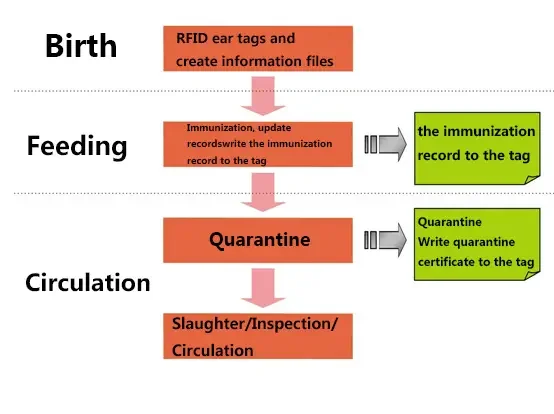

Record information on animal husbandry.transportation.slaughter and processing.storage.transportation and sales of animal products to track the possible problems in each link and solve them in time.
System Design
RFID animal ear tag adopts the EPC tag complying with the international standard ISO 18000-6C protocol, The EPC area data encoding is based on the national standard “Animal Radio Frequency Identification Code Structure” and combined with the characteristics of Xinye EPC tags.
| Â | EPC (96Bit) | User ( 28Bit ) | |||||||
| Tag ID | Application | Times | User information | Country | Code | Birth | Operator | write time | Quarantine |
Â
System Features
Track individual animal throughout the life cycle to ensure food safety.
Fully display the technical advantages of RFID, identify convenient, flexible and anti-pollution, especially suitable for batch work.

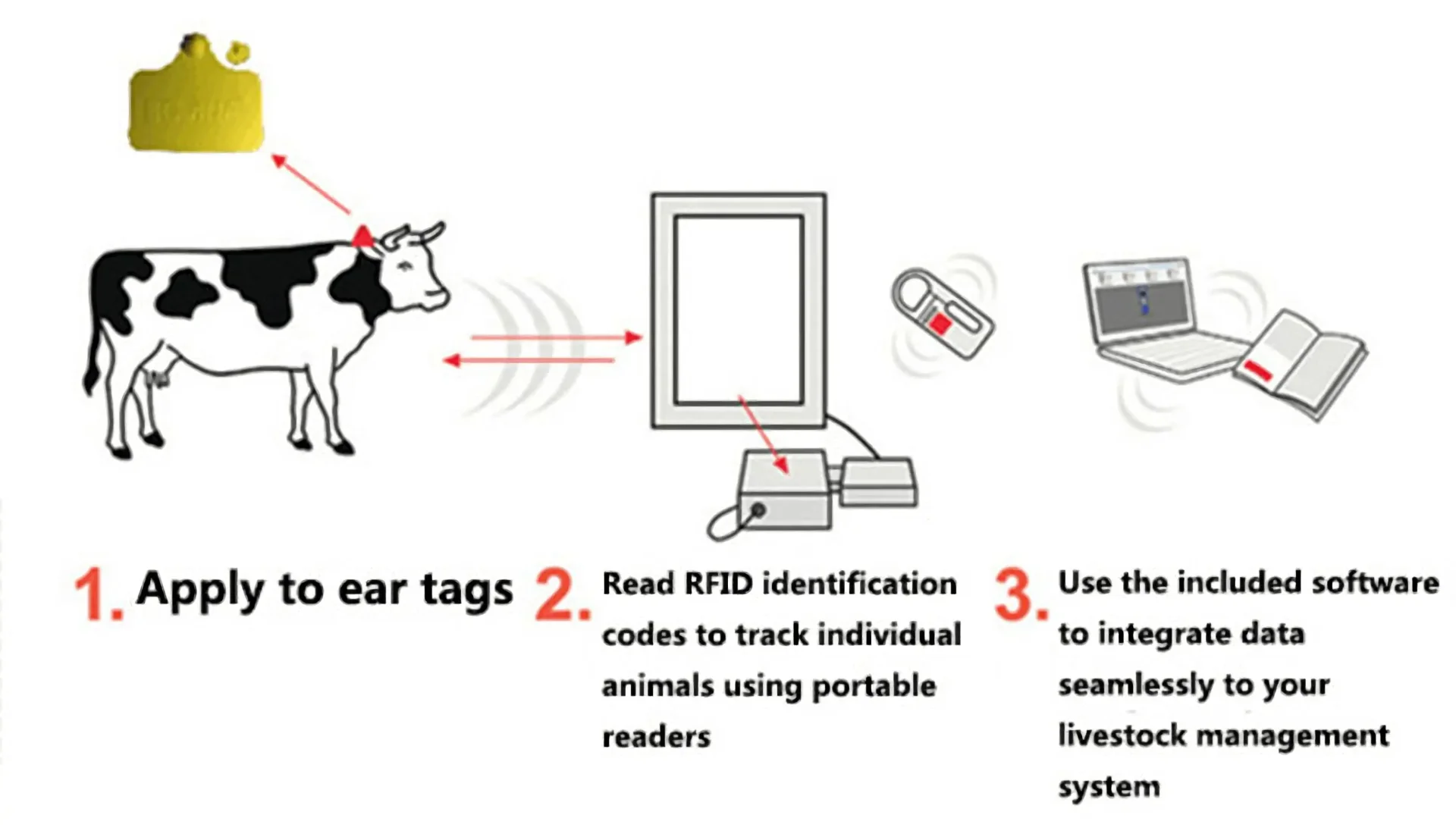

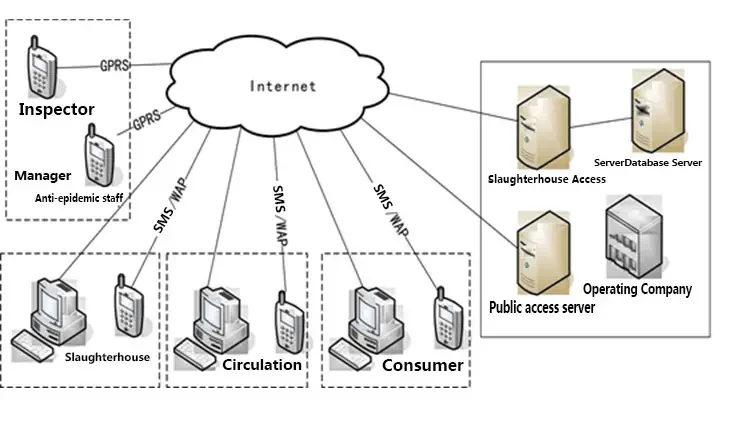

RFID ear tag, RFID hand-held reader, GPRS network, background database, application software, all parts are closely combined to ensure the high-speed operation of the traceability system.
Data centralization management can interface with the animal tracing database of the ministry of agriculture.
RFID Animal Ear Tag |
Access Conditions:Read, write |
EPC:240bit |
TID:64bit |
Frequency:860-960MHz |
Protocol:ISO18000-6C EPC CIG2 |
Operating Distance:0-3m(Related to reader and antenna configuration.) |
Operating Temperature:-10℃~+75℃ |
Storage Temperature:-20℃~+85℃ |
Data Retention: 10years |
Material: HDPE.TPU |
Installation:Use animal pliers to hold the animal’s ears |
Application:Information management of animals and livestock |
RFIDÂ Fixed Reader |
Frequency: 902-928MHz/920-925MHz |
Protocol:ISO18000-6C EPC CIG2 |
Size: 288*204*68mm |
Weight: 2kg |
Material: PC.ABS |
LED:5 |
Operating Temperature:-10℃~+55℃ |
Storage Temperature:-20℃~+80℃ |
Humidity:≤85% |
Data interface:4TTLÂ Input.4TTLÂ Output |
Baud-rate:40kbps |
Operating Distance:0-10m(Related to reader and antenna configuration.) |
Antenna interface:Supports up to 4 SMA interfaces |
Communication Interface:RS232.100M Ethernet |
Upgrade:Support firmware upgrade |
Power Supply:100-240V AC |
RFID Hand-held Reader |
Size:240*90*40mm |
Weight:Â 0.52-0.95kg |
Material: PC.ABS |
Operating Temperature:-10℃~+50℃ |
Storage Temperature:-20℃~+70℃ |
Frequency:Â 920-925MHz |
Protocol:ISO18000-6B/6C |
Read Distance: 0-7M |
Write Distance:0-2.5m |
Operating System:Windows CE 5.0 |
Communication Interface:USB Host.USB Slave |
Wireless Communication Interface:WIFI.GPRS |
Barcode:Industrial barcode module supports one and two dimensional |
Storage Card:Support 2G Micro SD Card |
operating Time:8 hours for typical workplace |
Standby Time:20 days |
Power Supply:100-240V AC,5V/3A DC |
Software:Demo.API |
Â
Effect Analysis
Social Benefits
Improve the information literacy and management level of employees.
Improve consumer trust.
Respond to major disease rapidly.
Deal with disease problems in time.
Economic benefits
To raise the status of animal husbandry in the world and increase exports.
Save production costs
Timely detection of disease and reduce losses
